Black Bear Lever Chain Hoist - 1.6 Ton (YL-160)www.blackbearhoistparts.com
*** CLICK ON PICTURE FOR LARGER VIEW ***
Key #
Part #
Description
Qty. Req.
Price Each
1
ML1401B89I
Hex Recess Bolt
2
$2.22
ML1441B89I
Spring Washer
3
ML1001B89I-S
Hand Wheel - Sliver
$21.11
4
ML1002B169I
Stopper
$4.44
5
ML1461B169I
C- Ring
6
ML1402B169I
Hex Bolt
7
ML1442B169I
8

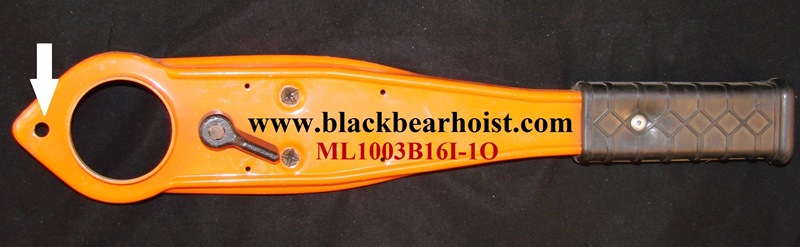

ML1003B16I-1O
Lever Outside Ass'y - 1 HOLE ORANGE
$50.49

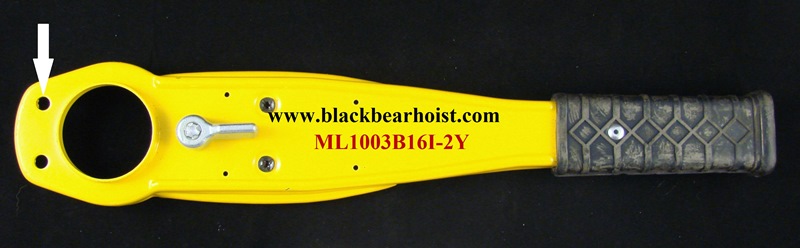

ML1003B16I-2Y
Lever Outside Ass'y - 2 HOLE YELLOW
$50.00
NO PN

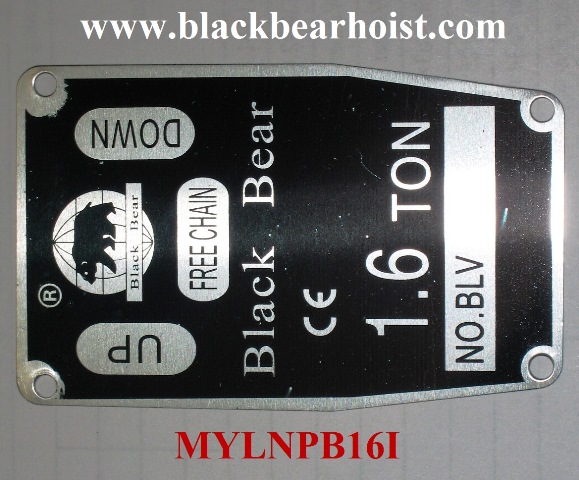

MYLNPB16I
Name Plate w/Rivets

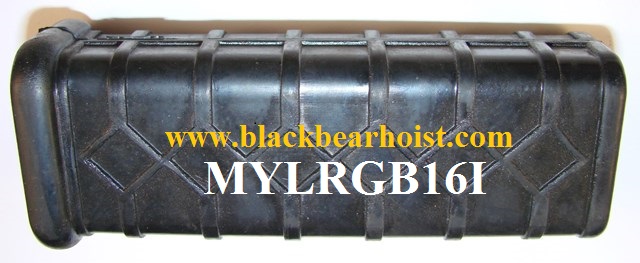

MYLRGB16I
Rubber Grip
9

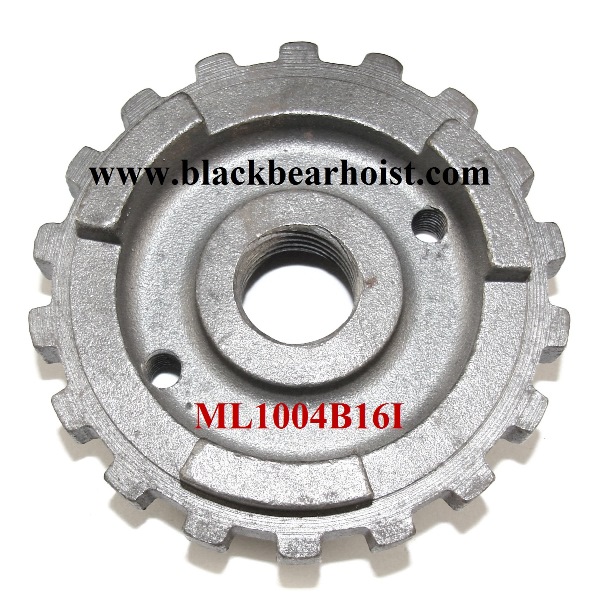

ML1004B16I
Feed Gear
$23.33
10
ML1005B89I
Feed Ratchet
$5.56
11
ML1006B89I
Ratchet Spring Pin
$3.33
12
ML1007B89I
Ratchet Spring
13
ML1011B169I
Feed Gear Cover
$17.78
14
ML1012B169I
Free Wheeling Spring
15
ML1421B816I
Hex. Nut
16
ML1443B816I
17

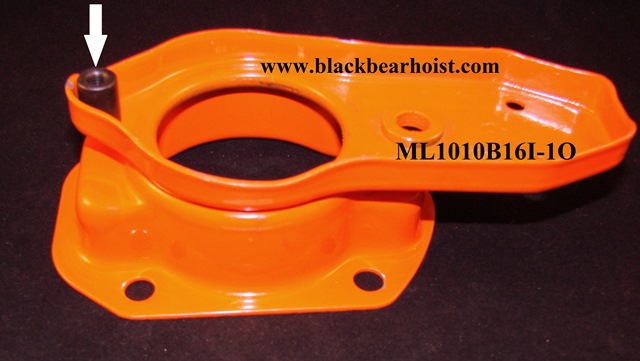

ML1010B16I-1O
Lever Inside Ass'y - 1 HOLE ORANGE
$25.59

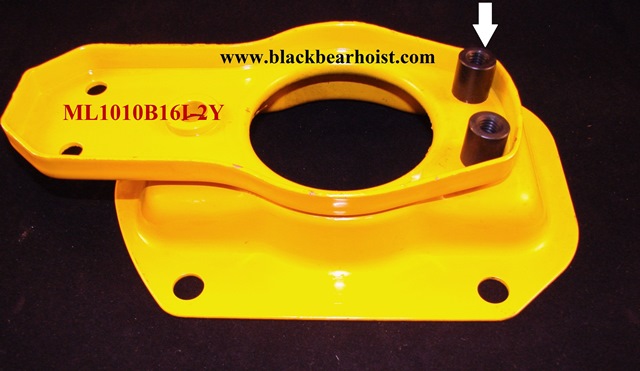

ML1010B16I-2Y
Lever Inside Ass'y - 2 HOLE YELLOW
$25.56
18
ML1013B169I
Brake Disc
$7.78
19
ML1014B169I
Ratchet Wheel
20
ML1015B169I
Disk Hub
$12.22

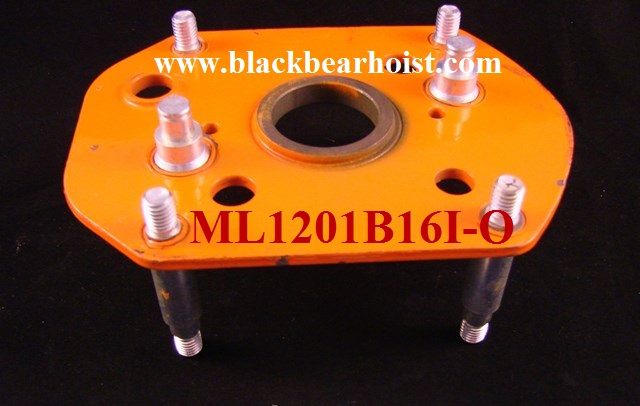

21
ML1201B16I-O
Lever Side Plate Ass'y - ORANGE
$36.67

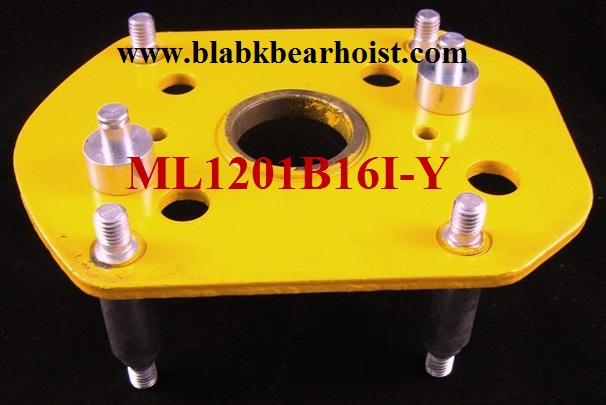

ML1201B16I-Y
Lever Side Plate Ass'y - YELLOW
22
ML1444B169I
23

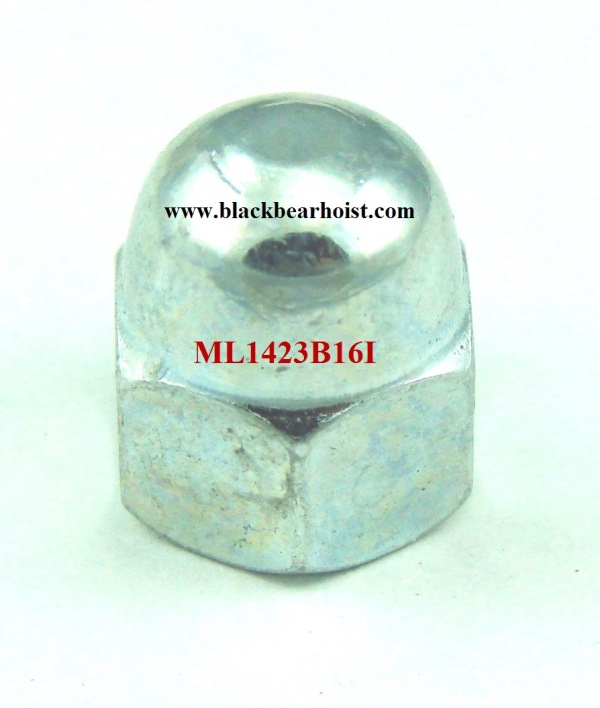

ML1423B16I
24
ML1462B169I
E-Ring
25
ML1205B16I
Ratchet
26

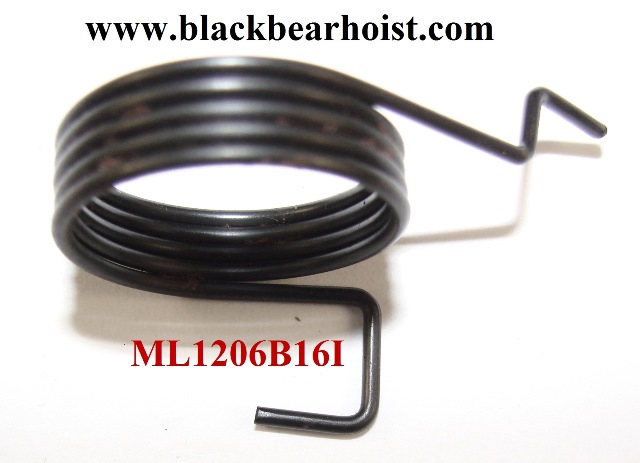

ML1206B16I
27

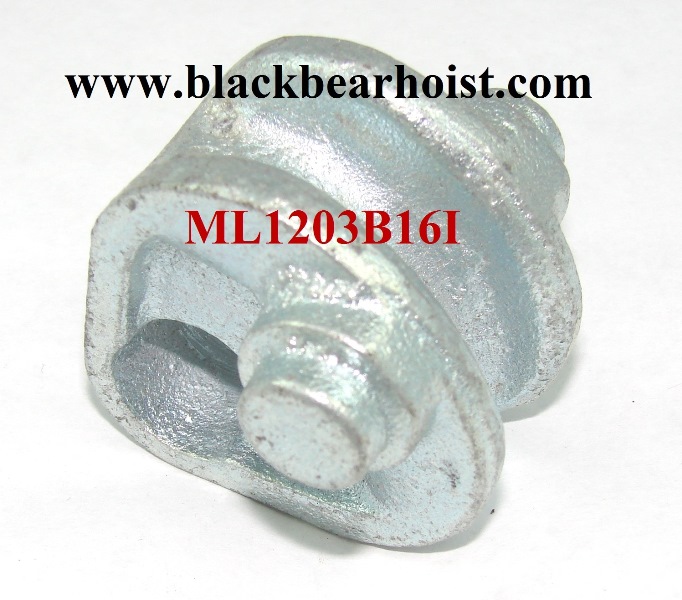

ML1203B16I
Chain Guide
28

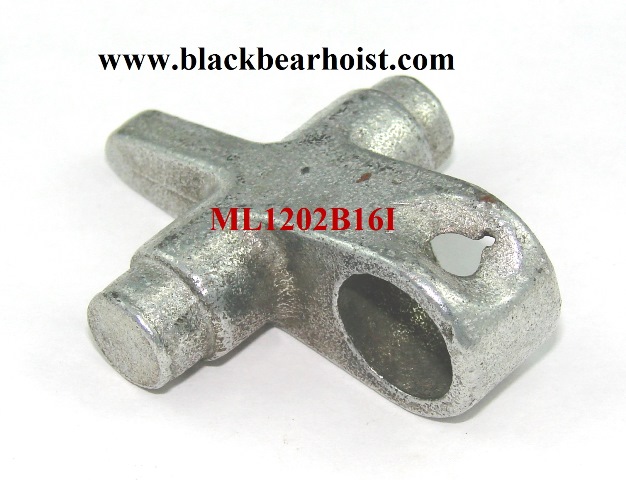

ML1202B16I
Chain Stripper
$11.11

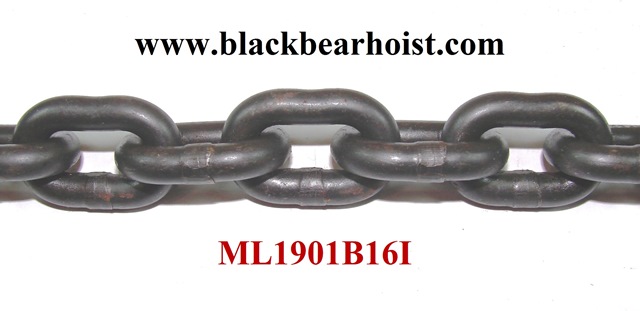

29
ML1901B16I
LOAD CHAIN - 7.1mm
$8.89
30

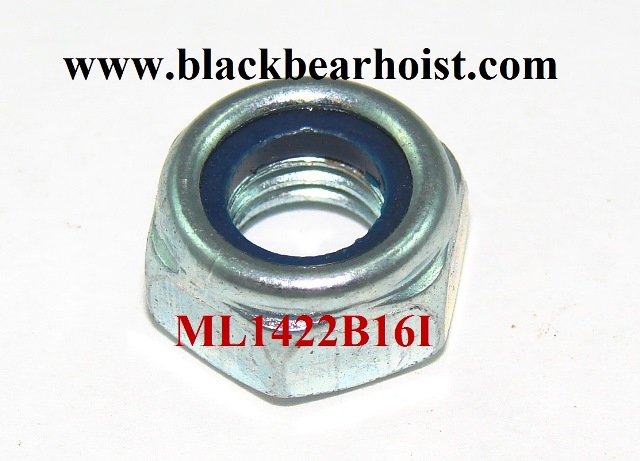

ML1422B16I
Nylon Lock Nut
31

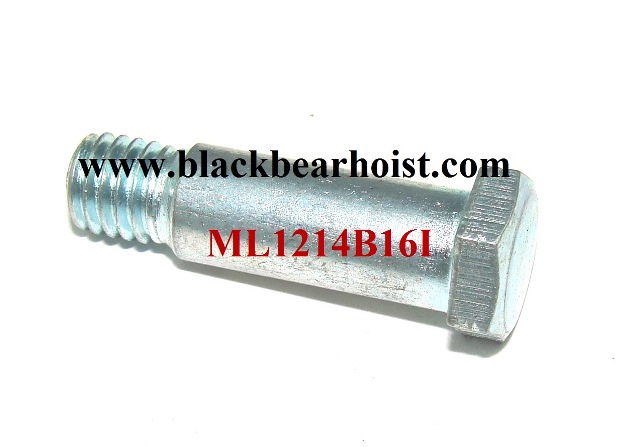

ML1214B16I
Hex. Bolt
32
ML1215B16I-Y
BOTTOM HOOK ASS'Y - YELLOW
$59.99
33

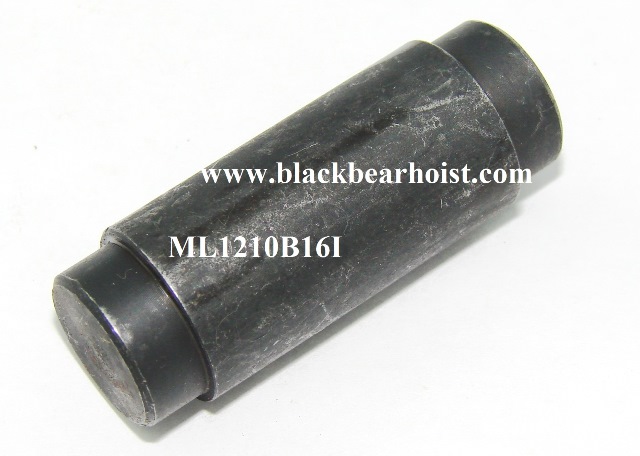

ML1210B16I
Top Hook Pin
34
ML1208B16I
TOP HOOK ASS'Y - YELLOW
$55.56
35

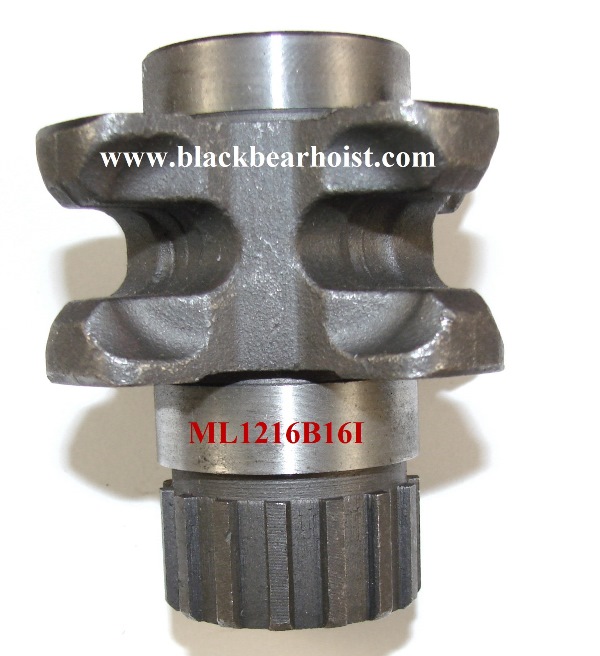

ML1216B16I
Load Sheave
$81.11
36

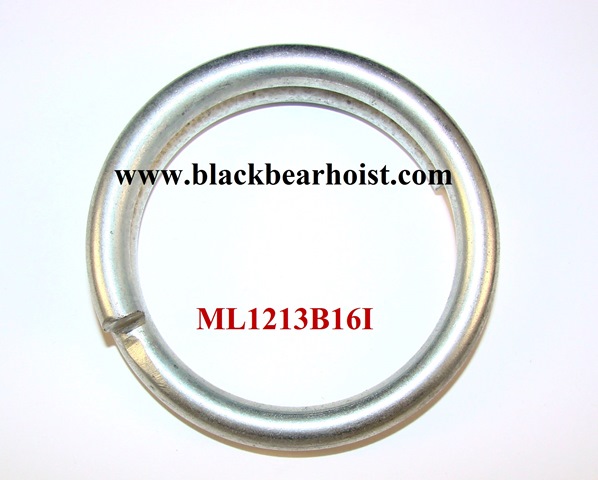

ML1213B16I
Chain Stopper
37

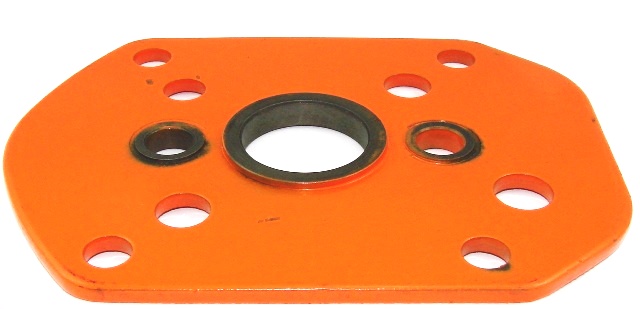

ML1211B16I-O
Gear Side Plate Ass'y - ORANGE
$27.78
ML1211B16I-Y
Gear Side Plate Ass'y - YELLOW
38

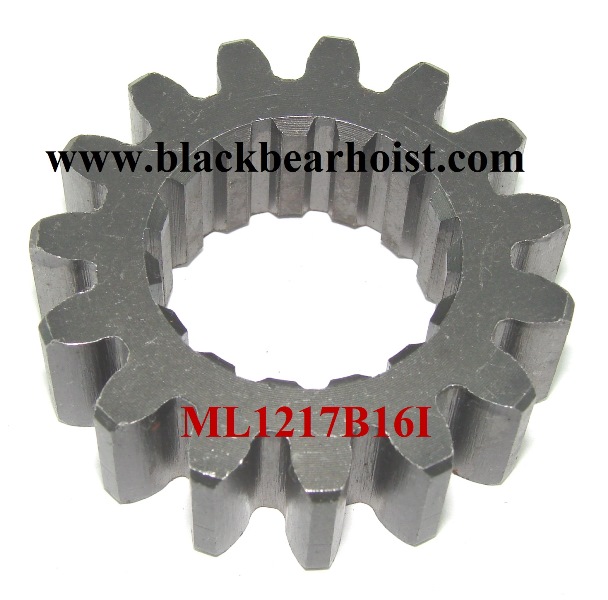

ML1217B16I
4th Gear
39

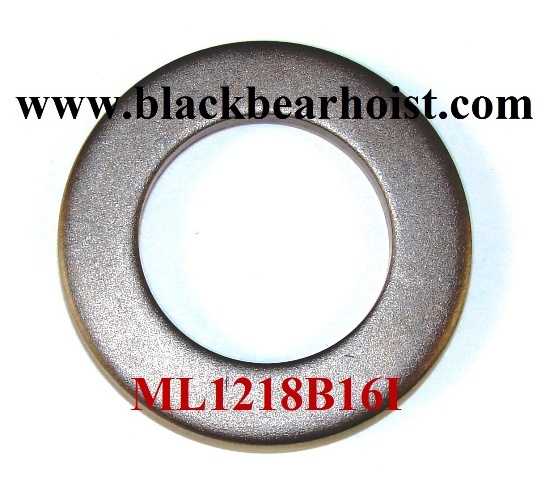

ML1218B16I
Flat Washer
40

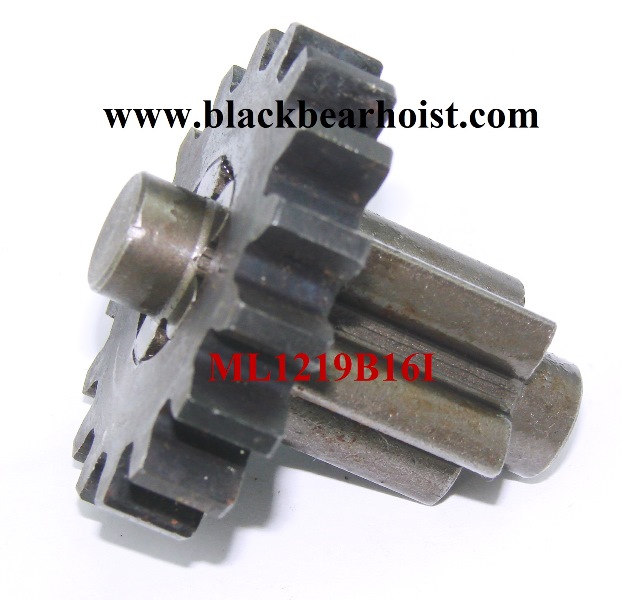

ML1219B16I
2nd/3rd Gear
$28.89
41
ML1220B16I
Pinion Gear
$43.33
42

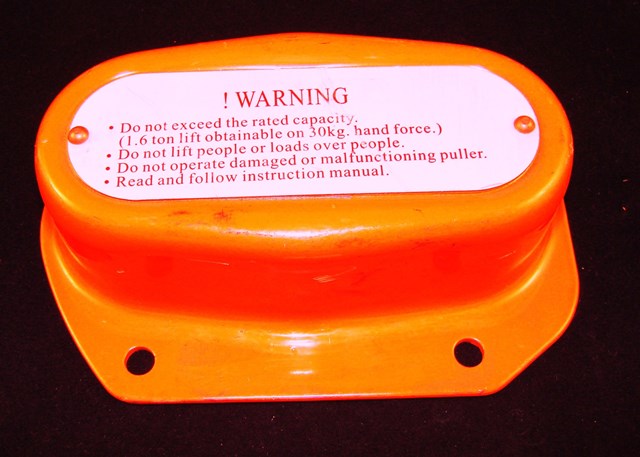

ML1221B16I-O
Gear Case Cover - ORANGE
$47.78
ML1221B16I-Y
Gear Case Cover - YELLOW
43
ML1209B16I-O
Safety Latch - ORANGE
ML1209B16I-S
Safety Latch - Smooth - YELLOW
ML1209B16I-N
Safety Latch - Notched - YELLOW
1) All Prices are subject to change without notice.
2) 1 L. Ft. = 1 Liner Foot
3) All prices F.O.B Fontana, CA, Prepay & Add.
4) Prices does not include freight or applicable taxes.
